Carthage Mills Woven Geotextile Separation and Stabilization Fabric

Carthage Mills Woven Geotextile Separation and Stabilization Fabric

Carthage Mills FX-55 Woven Geotextile Fabric 12.5' x 432' Roll

Sold out
$0.00


FREE SHIPPING
SKU FX-55-12.5X432

Carthage Mills FX-55 is a woven geotextile fabric made of high-tenacity polypropylene yarns woven into a stable network. FX-55 is part of the Carthage FX Slit-Film Series of woven geotextiles, achieves higher tensile strengths at low elongation (high modulus), is inert to biological degradation, and resistant to naturally encountered chemicals, alkalis, and acids.

AASHTO M 288 : Carthage FX-55 meets the geotextile requirements of Class 3, <50% elongation for Separation and Stabilization.

12.5' x 432' Roll - 5,400 Square Feet

PRODUCT SPECS

  • Model: FX-55-12.5x432
  • Brand: Carthage Mills
  • Size: 12.5' X 432'
  • Square Feet / Roll: 5,400
  • Fabric Specifications: Woven Polypropylene Separation/Stabilization

CARTHAGE MILLS - GEOTEXTILES

FABRIC SHIPPING TIME -
GEORGIA WAREHOUSE

  • All items ship for free (standard ground, see map)
  • Call: (800) 604-5537 for pricing and shipping questions.

By default, Carthage Mills fabric orders ship from the Georgia warehouse where a full stock of the Carthage fabric types are maintained. Most orders ship the next day (M-F) if order is placed before 11:00 AM EST. Transit times displayed in the map are listed in business days, are approximate and are specific to the Carthage fabric line. The day that the order is shipped is not counted as a transit day. Most Carthage Mills fabric rolls ship via LTL freight.

For expedited shipping rates please call:
(800) 604-5537

The transit times displayed on the map are for our free shipping option.

FABRIC SHIPPING TIME -
NORTHERN CALIFORNIA

Note: By default, orders ship from the Georgia warehouse with the standard transit times shown above. If you would like your order to ship from the Northern California warehouse (Lodi) you must first fill out a stock check request.  California warehouse orders must be placed over the phone.

Most Carthage Mills fabric California warehouse orders ship next day (M-F) if order is placed before 11:00 AM EST. Transit times displayed in the map are listed in business days, are approximate and are specific to the Carthage fabric line. The day that the order is shipped is not counted as a transit day. Most fabric rolls ship via LTL freight.

Select Carthage Mills Fabric is also housed in the following regional warehouses.

-  Minooka, IL
-  Bensalem, PA
-  Kirkwood, NY

please call to confirm availability for these
locations: (800) 604-5537

The transit times displayed on the map are for our free shipping option.

CARTHAGE MILLS PRODUCT CHART

GENERAL APPLICATIONS

Carthage Mills' FX Series of woven slit film geotextiles offers immediate and cost effective solutions for most separation and many stabilization applications. By providing and maintaining separation of the aggregate and subgrade soils, the system life of both paved and unpaved roadways is extended significantly.

In unpaved applications, the aggregate remains useful throughout the entire life of the job, and access to work sites remains trouble free through all types of weather. Stabilization is provided primarily by their high strength at low elongation that distributes loads and reduces or eliminates rutting.

Most all types of geotextiles are excellent separators of aggregate and subgrade. However, only 'woven' geotextiles have the high modulus - resistance to stretch - necessary to provide stabilization over soft or poorly drained soils.

FX–55 is a medium weight geotextile and the one most frequently used in DOT and private engineered projects.

FX–66 is a heavier weight geotextile typically used when higher than average stabilization is required.

FEATURES AND BENEFITS
Carthage Mills' FX® Slit-Film Series of woven polypropylene geotextiles are designed to provide cost-saving solutions in a wide range of applications and varying site conditions.

SEPARATION: Prevents dissimilar materials from intermixing, thereby extending the system lives of both paved and unpaved applications.

STABILIZATION: Higher tensile modulus at low strains delivers immediate support and load distribution in moderate subgrade conditions.

DURABILITY: Excellent resistance to installation damage assures long-term performance.

COST SAVINGS AND EFFECTIVENESS: Low-cost and High performance assures savings in structural materials, labor costs and future maintenance for many civil engineering applications.

APPLICATIONS

The Carthage Mills' FX Series of woven slit-film geotextiles are ideal for use in:

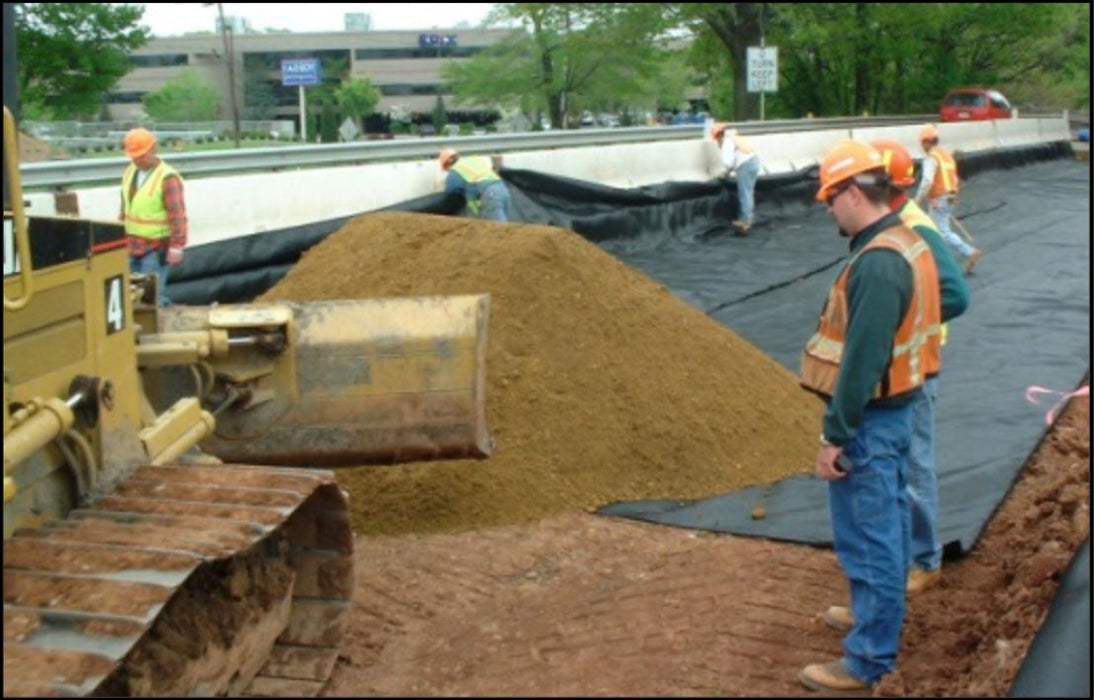

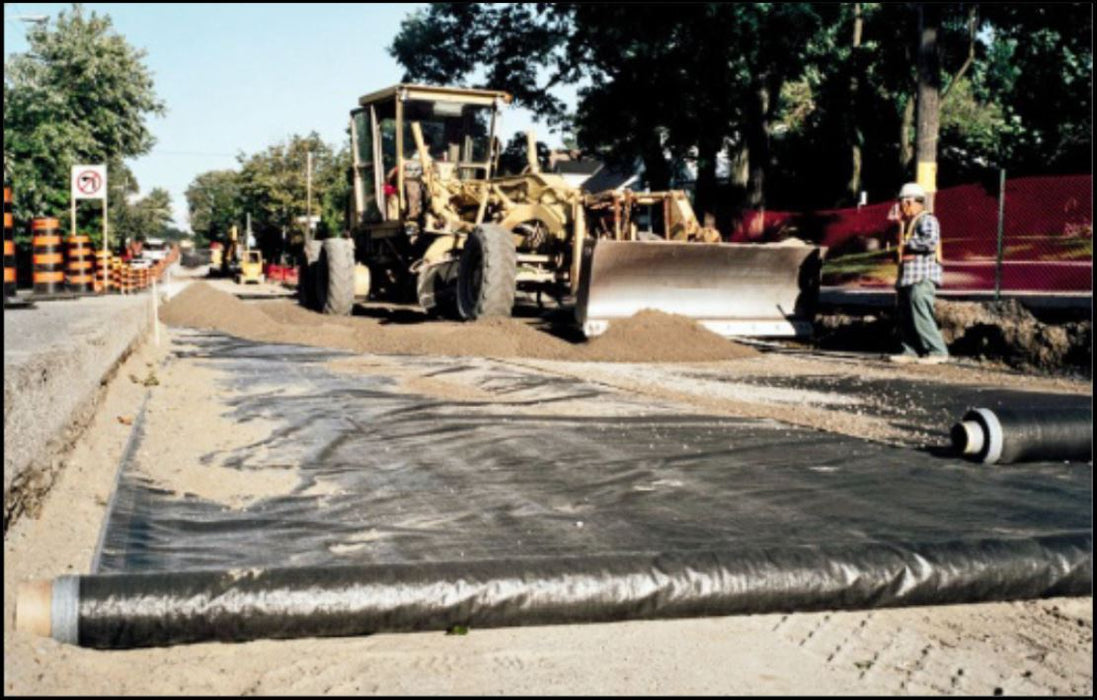

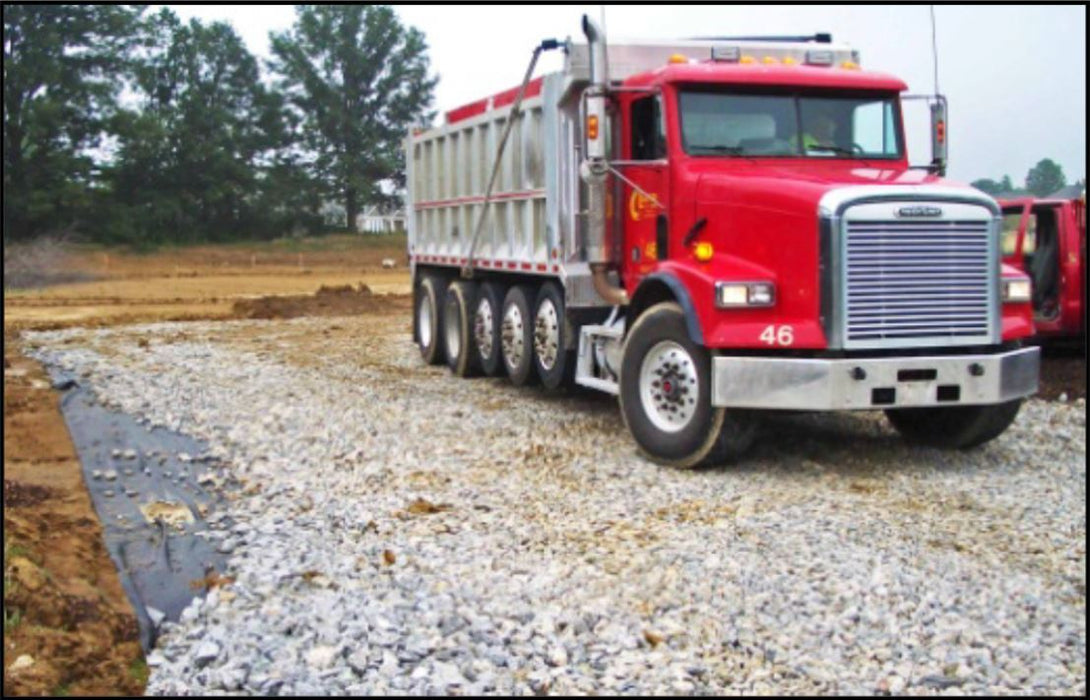

  • Separation under driveways and streets, parking, storage and staging areas, roadways, airport runways, paving blocks, and access/haul roads
  • Wrapped-face retaining walls
  • Separation of Aggregates
  • Foundation stabilization
  • Daily landfill covers
