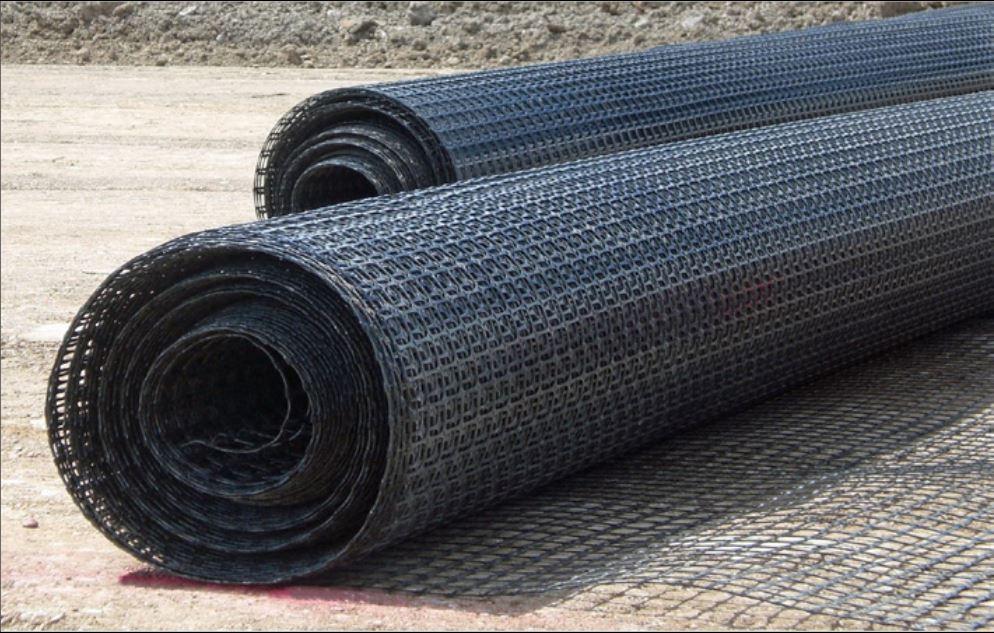

GBX-12 Biaxial Geogrid on the ground with dirt and rocks

GBX-12 Biaxial Geogrid on the ground with dirt and rocks

Carthage Mills GBX-12 Biaxial Geogrid 13.1' x 164' Roll

Sold out
$0.00


FREE SHIPPING
SKU GBX12-13.1x164

The biaxial geogrid staple of the geosynthetic industry for over 30 years is now available at Carthage Mills. The Carthage GBX 12 Series of integrally formed biaxial geogrid – including commonly referred to Type 2  is produced of the highest grade polypropylene (PP).

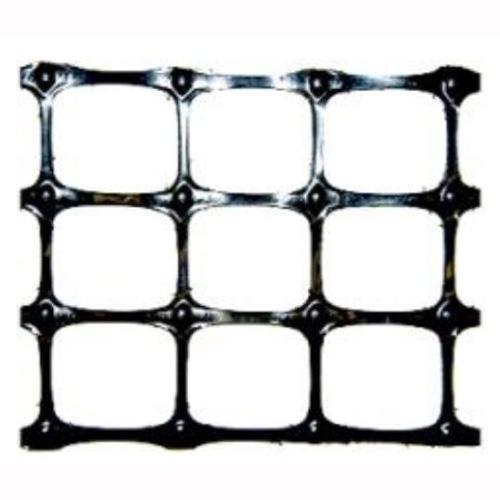

Aperture Dimensions: 25 mm (in) & Min. Rib Thickness: 1.27 mm (in)

13.1' x 164' Roll - 2,148 Square Feet

PRODUCT SPECS

  • Model: GBX-12
  • Brand: Carthage Mills
  • Size: 13.1' X 164'
  • Square Feet / Roll: 2,148
  • Material:  Polypropylene mesh

CARTHAGE MILLS - GEOTEXTILES

FABRIC SHIPPING TIME -
GEORGIA WAREHOUSE

  • All items ship for free (standard ground, see map)
  • Call: (800) 604-5537 for pricing and shipping questions.

By default, Carthage Mills fabric orders ship from the Georgia warehouse where a full stock of the Carthage fabric types are maintained. Most orders ship the next day (M-F) if order is placed before 11:00 AM EST. Transit times displayed in the map are listed in business days, are approximate and are specific to the Carthage fabric line. The day that the order is shipped is not counted as a transit day. Most Carthage Mills fabric rolls ship via LTL freight.

For expedited shipping rates please call:
(800) 604-5537

The transit times displayed on the map are for our free shipping option.

FABRIC SHIPPING TIME -
NORTHERN CALIFORNIA

Note: By default, orders ship from the Georgia warehouse with the standard transit times shown above. If you would like your order to ship from the Northern California warehouse (Lodi) you must first fill out a stock check request.  California warehouse orders must be placed over the phone.

Most Carthage Mills fabric California warehouse orders ship next day (M-F) if order is placed before 11:00 AM EST. Transit times displayed in the map are listed in business days, are approximate and are specific to the Carthage fabric line. The day that the order is shipped is not counted as a transit day. Most fabric rolls ship via LTL freight.

Select Carthage Mills Fabric is also housed in the following regional warehouses.

-  Minooka, IL
-  Bensalem, PA
-  Kirkwood, NY

please call to confirm availability for these
locations: (800) 604-5537

The transit times displayed on the map are for our free shipping option.

CARTHAGE MILLS PRODUCT CHART

GENERAL APPLICATIONS

Rigid Biaxial Polypropylene Geogrids are most frequently specified to perform at least one of the following functions:
Reinforcement, Confinement

SERIES DESCRIPTION
The biaxial geogrid has been a staple of the geosynthetic industry for over 30 years, and is available at Carthage Mills. The Carthage GBX® Series of integrally formed biaxial geogrids – including commonly referred to Type 1 and Type 2 Geogrids – are produced of the highest grade polypropylene (PP).

The GBX Series is a competitively priced full-line of biaxial geogrids that employs the same combination of technology and materials which have demonstrated decades of proven success in the United States and throughout the world.

Design Engineers can specify with confidence that the GBX Series of geogrids will provide the cost effective performance and reliability that the industry has come to trust.

Contractors can be assured of seam-less submittals and project approvals when the GBX Series of integrally formed geogrids is their product line of choice.


FEATURES AND BENEFITS
The Carthage GBX Series of biaxial geogrids is the result of decades proven technology. They provide the high flexural rigidity and tensile strengths along the ribs and at the junctions that are required for long-term interlock and confinement in Soil Stabilization and Base Reinforcement applications.

MATERIAL AND MANUFACTURING PROCESS
Decades proven and worldwide tested for confidence in performance and reliability you can trust.

COST EFFECTIVELY INCREASES LOAD BEARING CAPACITY
Facilitates the construction of haul roads and staging areas over soft soils versus expensive and time consuming chemical stabilization or deep undercutting.

BASE REINFORCEMENT / STABILIZATION
High Tensile Strengths, Junction Efficiency, Flexural Rigidity and Aperture Stability confine and restrain aggregate from lateral movement, distribute applied loads over the subgrade, minimize rutting, reduce aggre-and provide a predictable and reliable level of performance to enhance pavement life.

COST SAVINGS – MATERIAL
Available roll widths up to 16 ft. minimize installation labor and material waste.

COST SAVINGS – PROJECT/SITE
Proven reductions in fill or aggregate thickness, hauling and equipment hours, undercutting, and rutting. Savings in structural materials alone have been as much as 50%.

APPLICATIONS
Typical applications include:

  • Base Reinforcement for paved highways and secondary roads, runways, and parking lots; railways.
  • As gabions for wall construction, erosion control structures and bridge abutments.

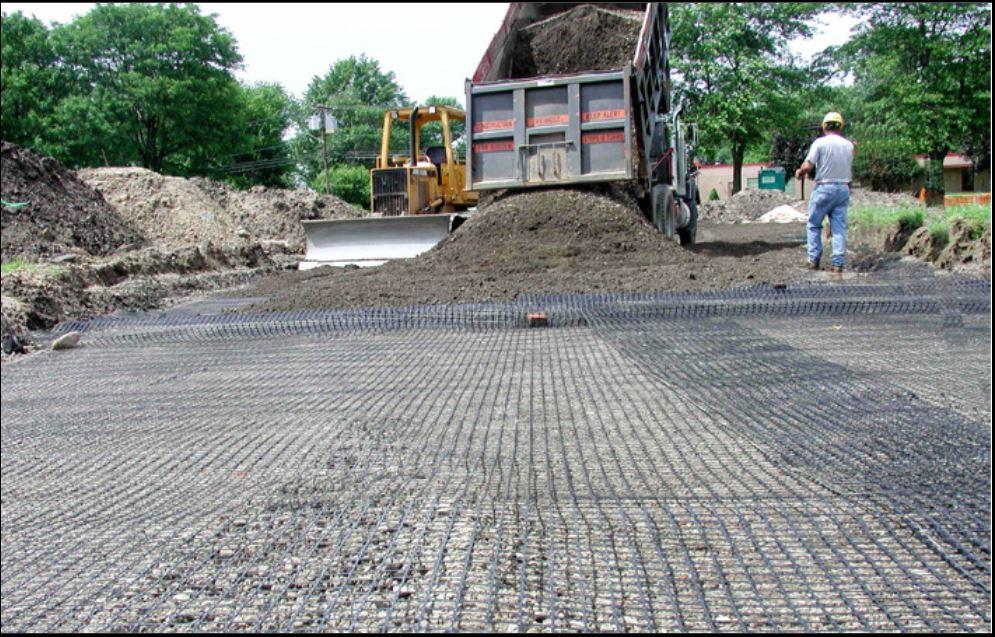

  • Stabilization/Reinforcement in haul roads, parking areas, equipment and staging yards.
  • Working Platforms/mattresses on weak subgrades such as soft soils, peat, tundra.
  • Foundation, cement or concrete reinforcement in a wide variety of applications.
