Peel and Stick Waterproofing Membrane - Subseal
$17.99
FREE SHIPPING
SKU 51336-Sample

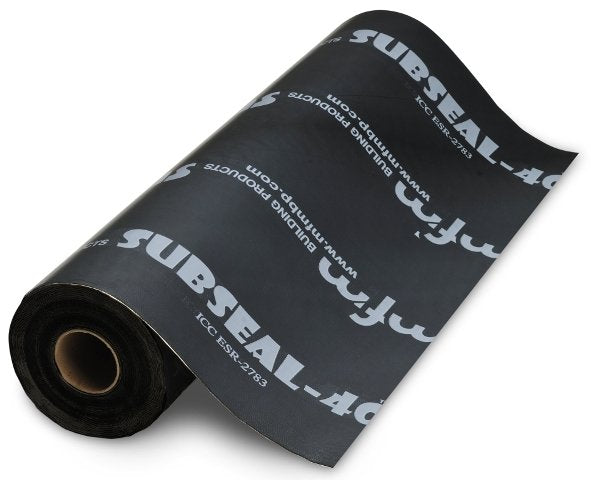

MFM SubSeal-40 & SubSeal-60 · Self-Adhering Sheet Membrane

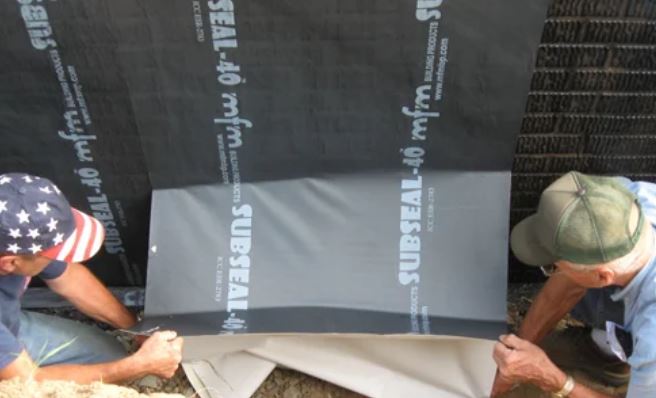

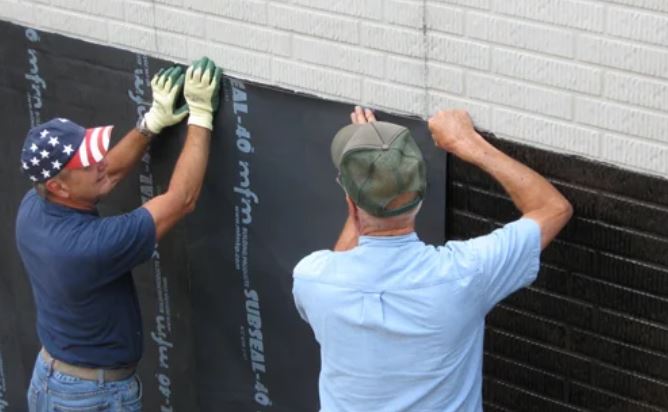

A prefabricated peel-and-stick waterproofing membrane — rubberized asphalt adhesive laminated to a tough multi-layer cross-laminated film. Pull the liner, set the sheet, roll it down. It bonds to the substrate and self-seals around nails, staples, and screws, and unlike a spray-on coating it goes on at a uniform thickness every time.
Cover It Do not expose installed product to direct sunlight for more than 90 days — SubSeal must be protected from long-term exposure to ultra-violet light.
| SubSeal-40 | SubSeal-60 | |
|---|---|---|
| Material thickness | 40 mils nominal | 60 mils nominal |
| Roll sizes | 6", 9", 12", 18", 36" × 75 ft | 37" × 60 ft |
| Area per carton | 225 ft² | 180 ft² |

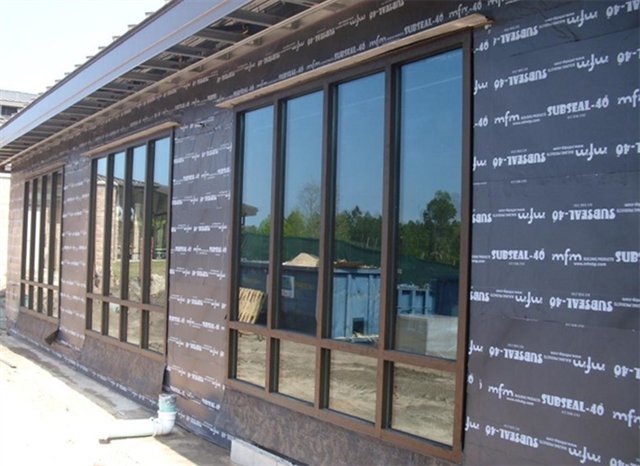

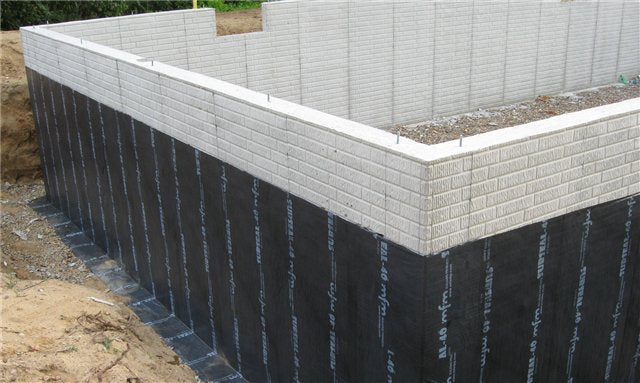

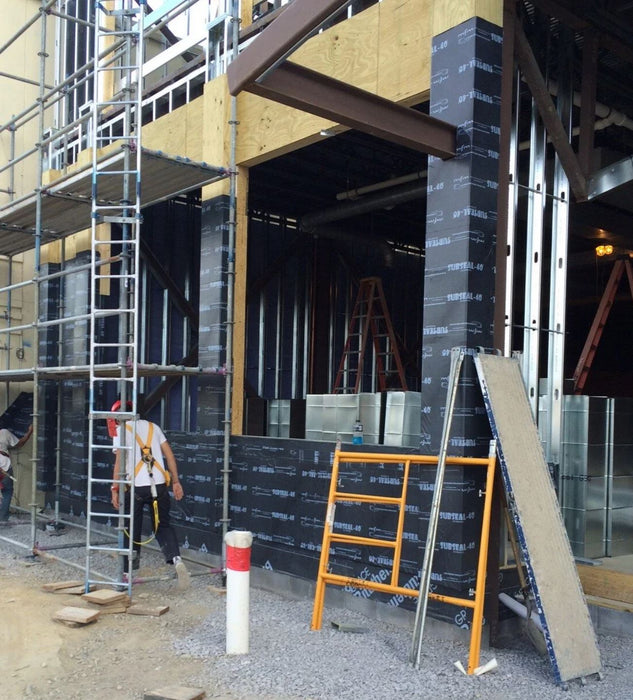

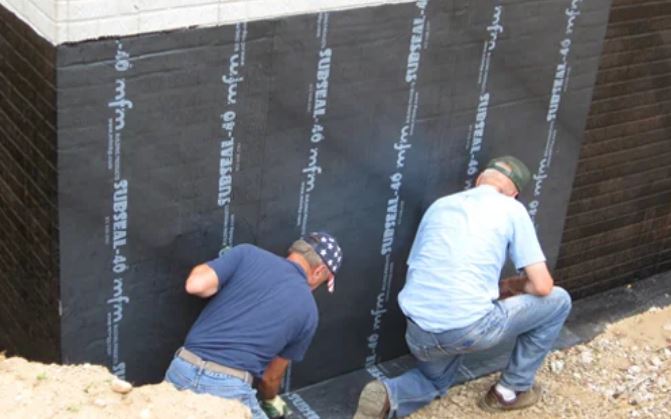

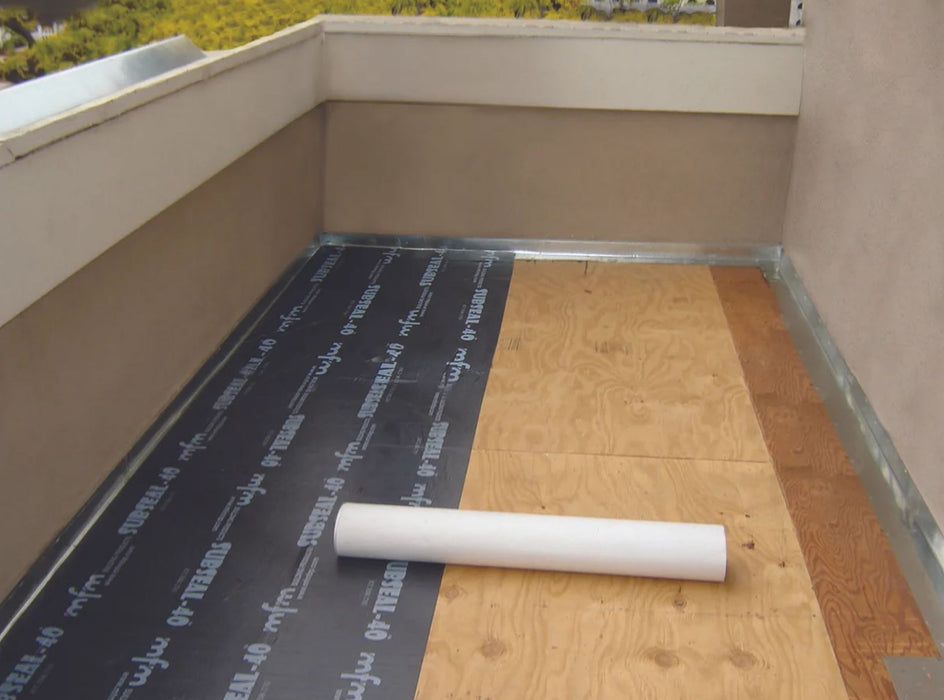

Applications: foundation walls, plaza decks and balconies, through-wall flashing, doors and windows, under stucco and masonry, planters, parapets, SIPS panels, and ICF with a film/foil surface.
Install temp>50°F
Side laps3"
Vapor permeance0.02 g/m² in 24h max
Head laps6"
Water resistance>30 hr. (ASTM D 779)
Warranty10-year limited
Approvals: ICC-ES ESR-2783 (AC148) · ICC-ES ESR-3980 (AC38) · AAMA 711-13 · LA County (LARC/LABC) · State of California (CRC/CBC) · tested to ASTM D 1970.
