Stratagrid Geogrid SGU60

Stratagrid Geogrid SGU60
Stratagrid Geogrid SGU60

Stratagrid Geogrid SGU60 - 6.25' x 288' Roll

$646.80 USD


FREE SHIPPING
SKU SGU60-6.25x288

Free Shipping - Please submit a Quote Request for quantities larger than listed below.

Minimum Qty Price
1+ $646.80
2+ $614.46
3+ $583.74
10+ $554.55

StrataGrid SGU60 is a high performance soil reinforcement product. It is made with polyester yarns that have a high molecular weight and extraordinary tensile strength. These yarns are then knitted into a dimensionally stable network of apertures to form the geometric grid shape which offers tensile reinforcement to the soil in both the vertical and horizontal directions.

NOTE: This product has replaced the StrataGrid SG200.

Size: 6.25' x 288'

Square Ft Per Roll: 1,800

STRATAGRID PRODUCT INFO

  • Model: Stratagrid SGU Series
  • Brand: Strata Systems
  • Size: Varies
  • Square Feet / Roll: Varies

STRATA - PRODUCTS

GENERAL APPLICATIONS

StrataGrid™
PET high-tenacity and low-creep yarn for soil reinforcement.

StrataGrid™ is a polyester, flexible, high-performance geogrid  used in soil reinforcement and other civil engineering  applications. StrataGrid™ is manufactured using a high-grade polyester yarn with special, high-tenacity, and low-creep  properties knitted into a network and then coated with a proprietary coating. It is differentiated from other geogrids with its superior elongation and stress-strain values, its wide widths (up to 5.7 m wide) and customized lengths. StrataGrid™ is available in two series: uniaxial and biaxial.

StrataGrid™ uniaxial series has a range of  ultimate tensile strengths ranging from 20 kN to 800 kN for varying design applications.
The StrataGrid™ biaxial series has a range from 20 kN to 200 kN.

StrataGrid™ is tested in GAI-LAP accredited labs and is CE, NTPEP, and ISO certified.


APPLICATIONS

The Stratagrid Series of geogrids are ideal for use in:

  • Embankment over soft soils (basal reinforcement)
  • Block and panel walls for highways, landfills, and other retaining walls
  • Below structural foundations
  • Reinforced steep soil slopes and
    embankments

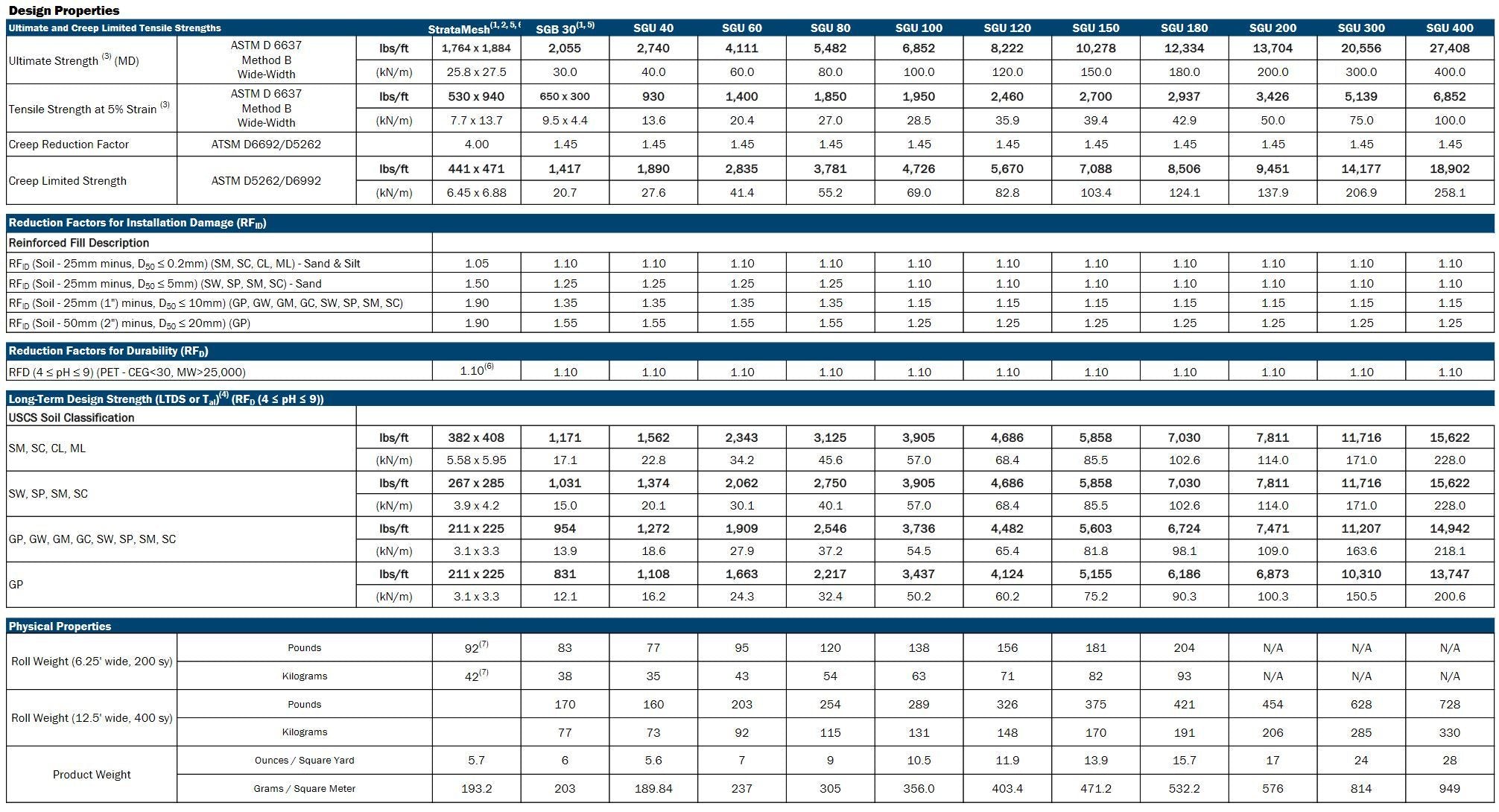

TECHNICAL SPECS
(click to enlarge)

Stratagrid geogrid product spec chart
